Safety Relief Valves
-
Vendor: WITTOpening pressure from 5 mbar to 500 mbar! Each unit individually factory set to your required pressure. The WITT safety relief valve Ultravent is used to avoid the lowest overpressure. Spring loaded, direct acting safety relief valve, optionally based on DIN EN ISO 4126-1,...
-
Vendor: WITT
Ultravent 6-ES: 5-500 mbar, ⅛"
Opening pressure from 5 mbar to 500 mbar! Each unit individually factory set to your required pressure. Thread sizes: ⅛” BSP & NPT RH Female The WITT safety relief valve Ultravent 6-ES is used to avoid the lowest overpressure. Spring loaded, direct acting safety... -
Vendor: WITT
Ultravent 15-ES: 5-500 mbar, ½"
Opening pressure from 5 mbar to 500 mbar! Each unit individually factory set to your required pressure. The WITT safety relief valve Ultravent is used to avoid the lowest overpressure. Spring loaded, direct acting safety relief valve, optionally based on DIN EN ISO 4126-1,... -
Vendor: WITTSpring loaded, direct acting safety relief valve for venting excess pressure from receivers, pipelines and other equipment. Available with ¼", ⅜". ½", ¾" BSP & NPT, VCR, M16, 18, 20 x 1.5 With or without venting adaptor Vent away connector (p/n: 801727800K)
-
Vendor: Niche Gas Products
Safety Relief Valves - Catalogue / Operating Instructions
Safety relief valves / pressure relief valves protect plant and equipment against explosion due to over pressure WITT is a manufacturer of safety relief valves or pressure relief valves. Safety relief valves respectively pressure relief valves or pressure safety valves are designed to protect against overpressure by... -
Vendor: WITT
AV919-ES: 5-500 mbar, 2", DN40
Opening pressure from 5 - 500mbar. Housing stainless steel (or Aluminium) Thread size: 2" BSP RH Female, 2" NPT female, DN 40 The WITT safety relief valve AV919 is used to avoid the lowest overpressure. The vital benefit compared to competitive products is its... -
Vendor: WITT
SV 811L: 4.5 ≤ 25.0 bar & >25.0 ≤ 45.0 bar
Spring-loaded, direct-acting pressure relief valve for hydrogen-powered motor vehicles in accordance with European Regulation (EC) No. 79/2009, as implemented by Regulation (EC) No. 406/2010. SV811 (Type 1) Opening pressure 4.5 up to ≤ 25.0 bar SV811 (Type 2) Opening pressure >25.0 up to 45.0... -

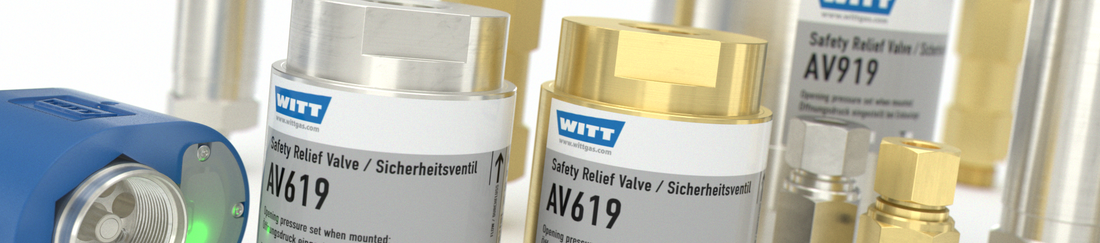

Vendor: Niche Gas ProductsOpening pressure from 5 to 500 mbar! Thread sizes: 1/2", 3/4" & 1" RH Female The WITT safety relief valve AV619 is used to avoid the lowest overpressure. The vital benefit compared to competitive products is its high accuracy response in the range from...
-
Vendor: WITT
SV805: >0.5 ≤45 bar & 90 ≤100 bar
Spring loaded, direct acting safety relief valve for venting excess pressure from receivers, pipelines and other equipment. Available with ¼", ⅜". ½", ¾" BSP & NPT, VCR, M16, 18, 20 x 1.5 Approvals: Manufactured and certified in accordance with EN ISO 4126-1 Company... -
Vendor: Niche Gas ProductsSpring-loaded, direct-acting safety relief valve for acetylene. To be used in conjunction with manifold pressure regulator in accordance with DIN EN ISO 7291. Approvals Company certified to ISO 9001 and PED 97/23/EC Module H Other models, options and accessories available on request.
-
Vendor: Niche Gas ProductsOpening pressure from 5 to 500 mbar! Thread sizes: 1/2", 3/4" & 1" RH Female The WITT safety relief valve AV619-ES is used to avoid the lowest overpressure. The vital benefit compared to competitive products is its high accuracy response in the range from...
-
Vendor: WITTOpening pressure from 5 mbar to 500 mbar! Thread sizes: ⅛” BSP & NPT RH Female The WITT safety relief valve Ultravent 6 is used to avoid the lowest overpressure. Spring loaded, direct acting safety relief valve, optionally based on DIN EN ISO 4126-1,...
WITT is a manufacturer of safety relief valves or pressure relief valves. Safety relief valves respectively pressure relief valves or pressure safety valves are designed to protect against overpressure by discharging pressurised gases (e.g. acetylene, ammonia, argon, CO2, helium, carbon monoxide, methane, propane, oxygen, nitrogen, hydrogen and compressed air) and vapours from pipelines, pressure vessels and plant components. Safety relief valves are often the last line of defence against explosion – and such an explosion could be fatal. Other common names for safety relief valves are pressure relief valve, safety valve, or blow-off valve.
There are two distinct ranges of Safety Relief Valve from Witt: 500mbar to 45 Bar; and a highly developed and unique range from 5 up to 500 mbar. Protect your sensitive systems and pipelines with the best from Witt!
WITT safety relief valves are available in brass or stainless steel, as ventable version, and with or without condensation outlet.
