Witt Gas Mixer MG50-100 2 / 3 ME Ex

Gas mixing systems for 2 or 3 defined gases, designed for a variety of industrial applications with high flows and fluctuating gas mixture production requirements.

Capacity range from 0 to approx. 5,685 scfh. For the exact pressure and flow capacity ratios, please refer to the data sheet. Note: System only works with sufficient buffer volume (100 to 250 liters depending on gas mixing capacity).

High process reliability:

• independent of pressure fluctuations in the gas supply
• intermittent gas mixture withdrawal possible
• lockable transparent door for protection of settings
• splash-proof and robust stainless steel housing

Options:

• for flammable gases available as Ex-version with separate control cabinet without electrical equipment as MP-version
• alarm module NXT+: integrated inlet pressure monitoring
• with digital display for pressure (with analog pressure transmitters) plus optical alarm, adjustable alarm limits, obligation of acknowledgement, protection of alarms, interfaces for controlling external alarms etc.
• integrated gas analysis for the monitoring/control and documentation of the gas mixture production

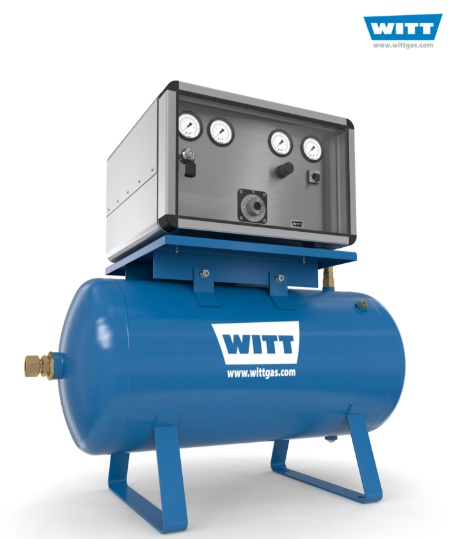

• gas mixer mounted on gas mixture buffer tank for a more convenient installation

Other models, options and accessories available on request. Please identify the individual gases at the time of enquiring!
