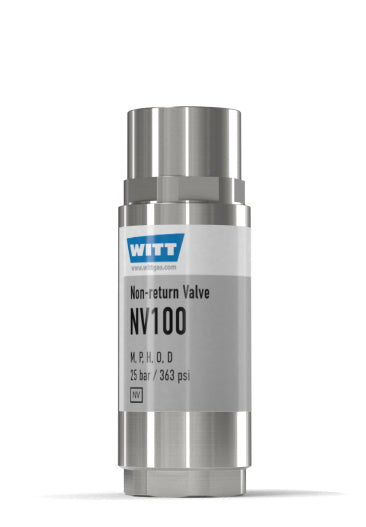

Non-return Valve NV100, Stainless Steel (formerly R53-ES)

WITT non-return valves for reliable protection against dangerous reverse gas flow.

Every non-return valve 100% tested.

The best non-return valves in the world.

Benefits:

• a spring-loaded non-return valve prevents a reverse flow of gases, which could lead to unwanted gas mixtures
• low pressure drops – using complex valve assembly with low opening pressures (approx. 30 mbar)
• no leaks – using a spring-loaded valve assembly with elastomer sealing
• diverse applications – useful for many technical gases
• reduce installation costs – the spring-loaded valve is not affected by gravity and may be installed in any orientation

Operation / Usage:

• non-return valves are used to protect equipment and pipelines against dangerous reverse gas flow. Use is possible for applications according to EN 746-2
• WITT non-return valves may be mounted in any position / orientation
• the maximum ambient / working temperature is 70 °C / 158 °F

Maintenance:

• annual testing of the non-return valve and body leak tightness is recommended
• WITT is happy to supply special test equipment
• non-return valves are only to be serviced by the manufacturer

Approvals

Company certified ISO 9001

Cleaned for Oxygen Service according to EIGA IGC Doc 13/12/E: Oxygen Pipeline and Piping Systems
