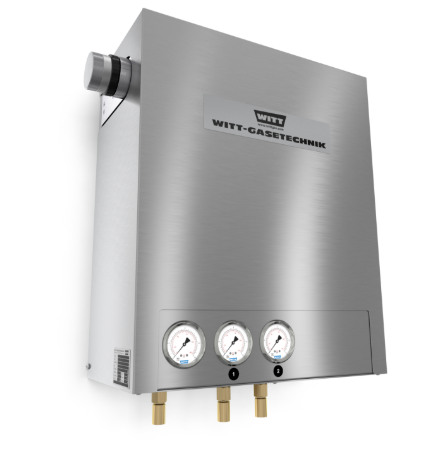

MixMaster 125-2 Flex

Gas mixing systems for 2 defined gases, designed for variable processes with a mixing range from 5-92%. See other ranges on the data sheet.

FLEX: adjustable, for 2-component gas mixtures.

Features new mixing technology patented by WITT, eliminating the need for a receiver.

• MG 25 capacity range up to approx. 790 SCFH
• MG 45 capacity range up to approx. 1640 SCFH
• MG 75 capacity range up to approx. 2400 SCFH
• MG 95 capacity range up to approx. 3170 SCFH
• MG 125 capacity range up to approx. 4780 SCFH

For the exact pressure and flow capacity ratios, please refer to the data sheet. Benefits:

• high mixing accuracy
• avoids the need to stock multiple pre-mixes (cost-saving)
• does not require receiver (cost- and space-saving)
• inlet gas filters protect the device against impurities
• pneumatic operating principle, no electrical connections required
• mixed gas production from 17 SCFH to the max. flow
• robust, compact design
• panel for wall mounting
• minimal maintenance required

Easy operation:

• a mixing valve with a control knob and %-scale provides infinitely variable mixture settings (FLEX)

High process reliability:

• independent of pressure fluctuations in the gas supply
• independent of withdrawal fluctuations (in permitted range)
• fail-safe design (unit shuts down on failure of either gas supply)
• lockable to prevent tampering (FLEX)

Options:

• alarm module NXT+: integrated inlet pressure monitoring with digital display for pressure (with analog pressure transmitters) plus optical alarm, adjustable alarm limits, obligation of  acknowledgement, protection of alarms, interfaces for controlling external alarms etc. - electrical connections required

Other models, options and accessories available upon request. Please identify the individual gases at the time of enquiring!

Our gas mixers are always customized to the needs of the costumer. Please tell us your specifications, we will realize them.
