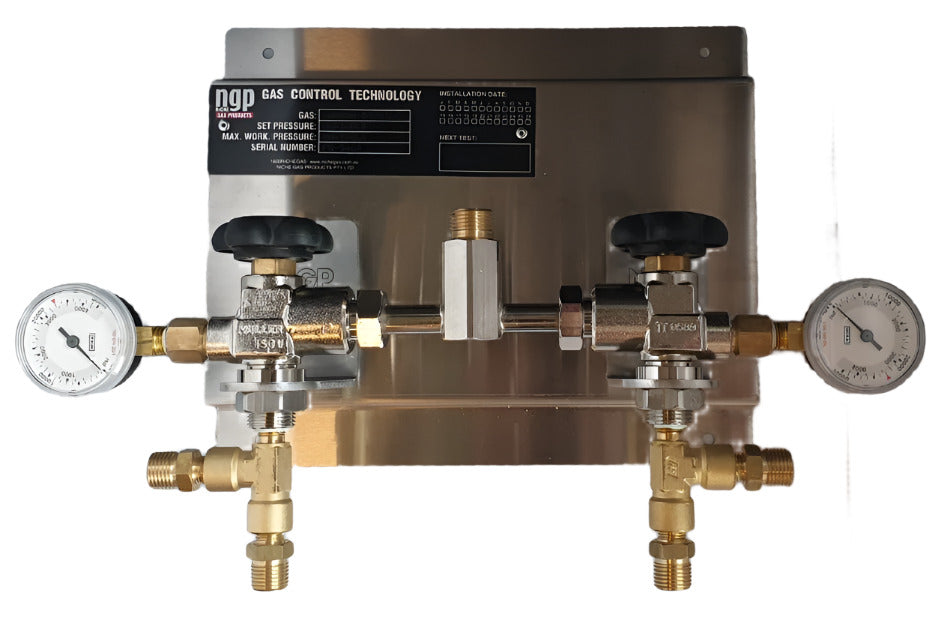

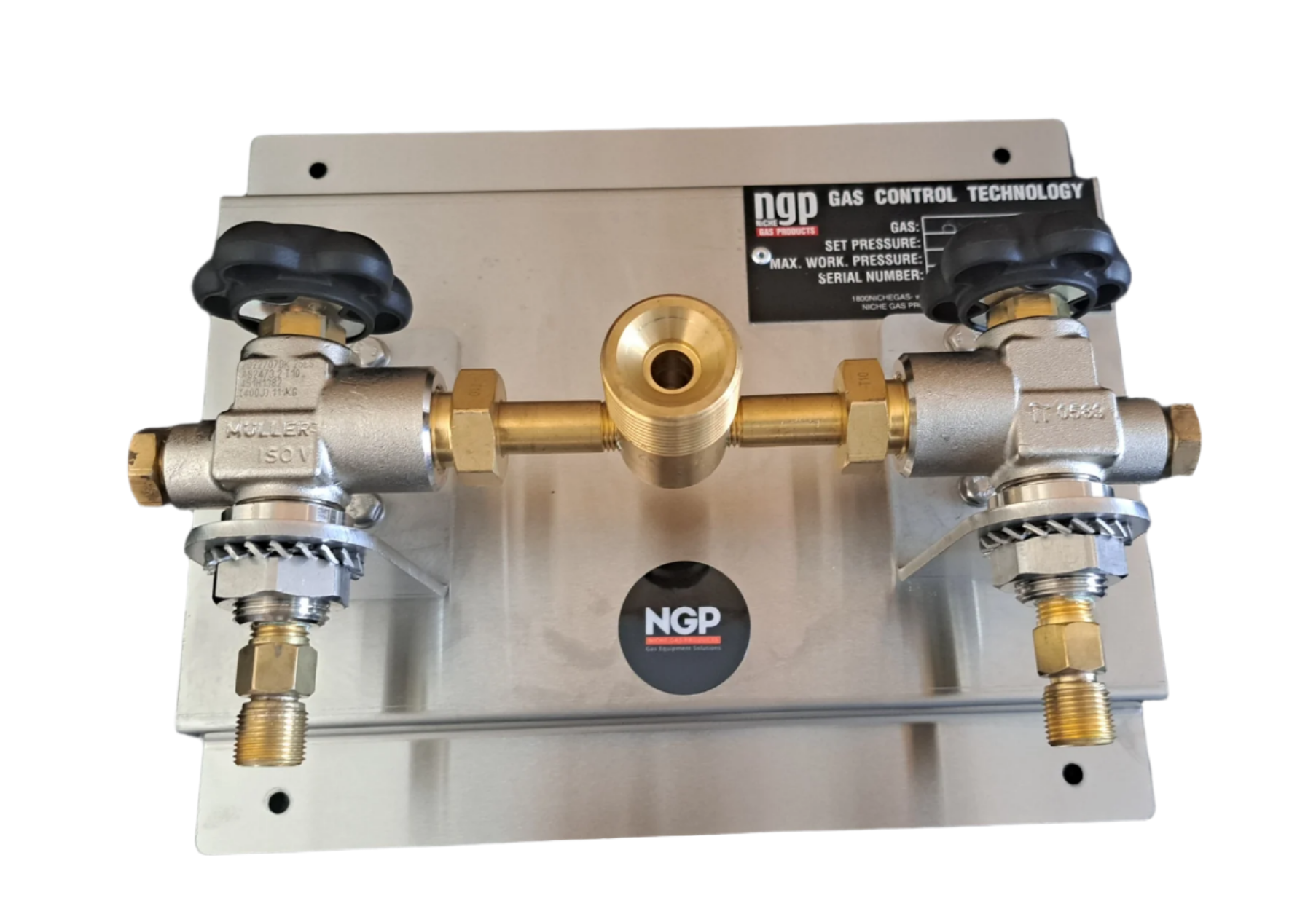

Manual Manifolds with Tee for most technical gases

NGP Gas Control Technology (GCT) Series Manual Manifolds are specially designed to regulate compressed gases in high pressure cylinders (up to 300 bar) and are ideal for manifold applications not requiring automatic changeover from the service to the secondary bank.

Starting with a clean slate, NGP has re-designed the typical manual manifold from the ground up.  Utilising the robust and reliable cylinder valve as the control valve for each side of the manifold, the GCT manifold is compact and the heart of your gas control

The design allows for pressure gauges to be added to each side, giving a visual indication of each bank’s cylinder contents. A manifold tee joins the valves to a common outlet that is threaded with the appropriate gas connection. This is where the control regulator will connect. NGP has excellent options for control regulators, depending on pressure and flow required.

Manifolds can be supplied with or without cylinder leads. See our separate hoses section for options of ARMA-flex or LifeGuard 'smart' safety hoses.

For high purity gas applications the manifolds are chrome plated, and inlet purge valves fitted.

If your interest is for a brand new set up, then also consider our GCT manual manifold option with the control regulator already in place.
