4.5 Purity Two Stage Brass Bar-stock Diaphragm BS EN ISO 7291 Differential Auto-change Gas Control Panel

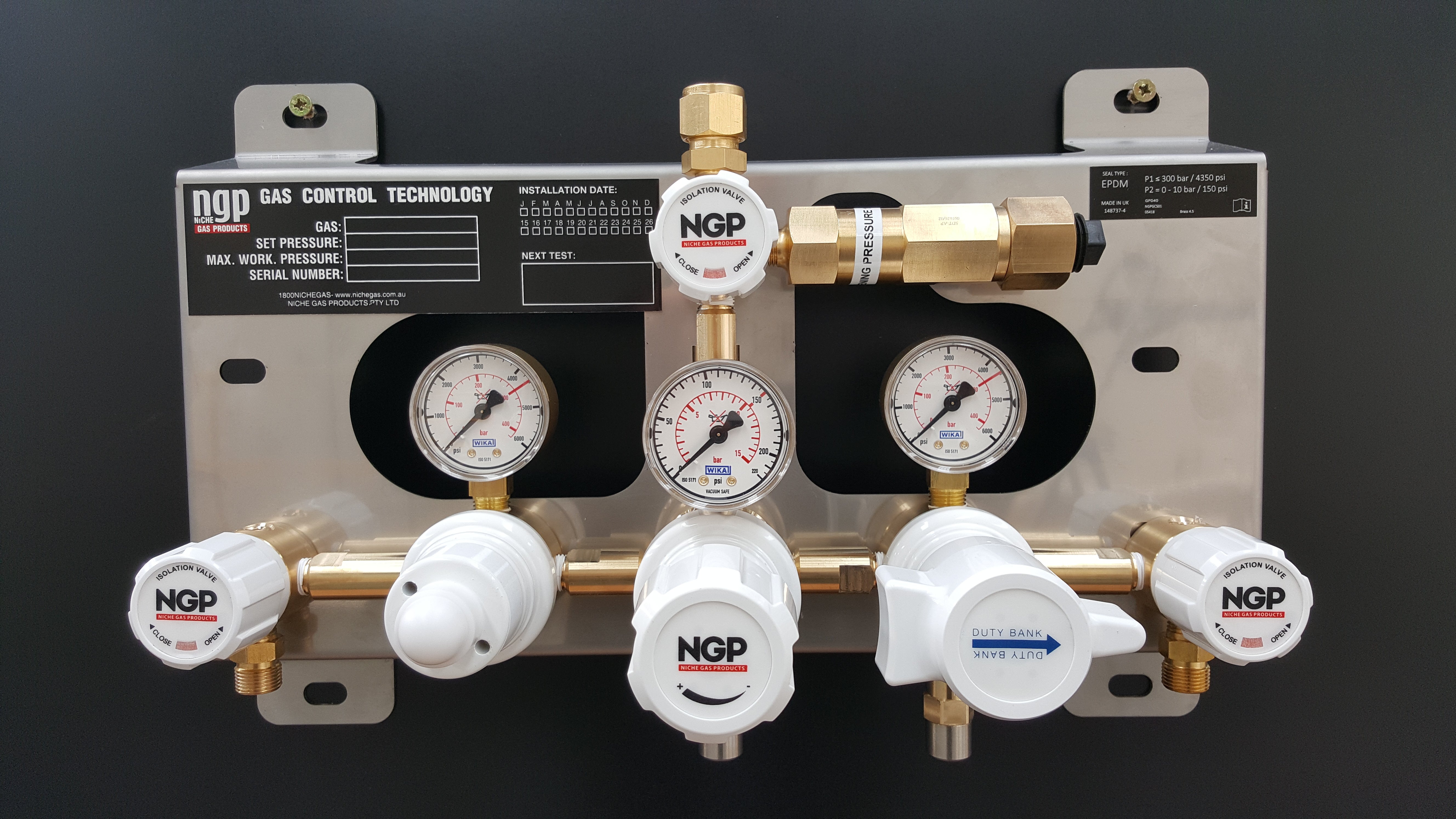

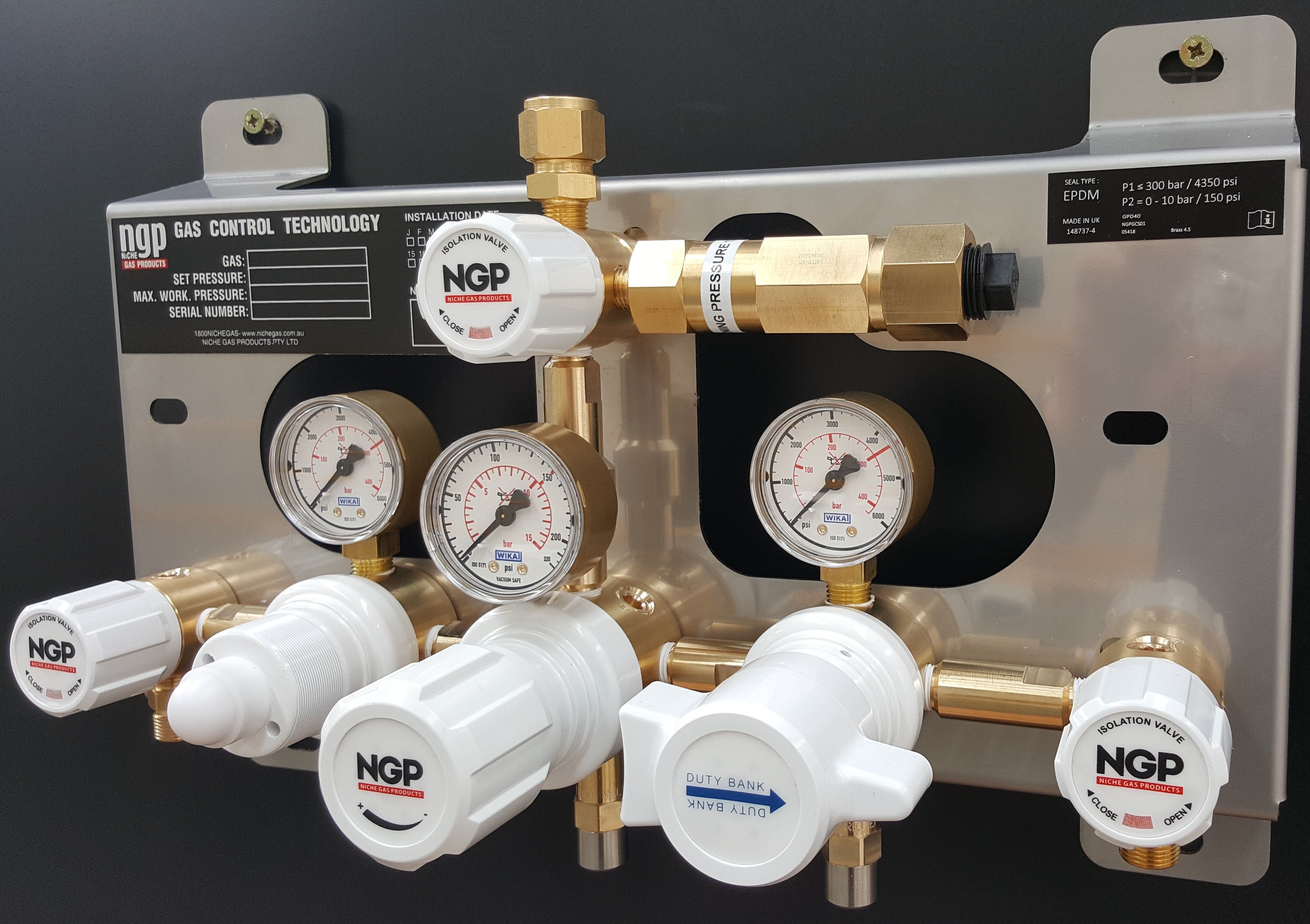

The Tech Master GPD4000 series two stage differential auto change control panels are designed for primary pressure gas control of non-corrosive or toxic, technical gases up to grade 4.5 purity (99.995%), on gas distribution systems where constant delivery pressure is required.
Future rated with 300 Bar inlet, separate line isolation valves, additional ports to add further connectivity and mounted on a stainless steel laser cut backing board gives the Tech Master GPD4000 series the winning edge to control your gases.
Maximum Inlet:- 60 bar (870 PSI) / 300 bar (4350 PSI)* Pressure
Delivery Pressure:- 3.5 bar (50 PSI)/6 bar(90 PSI)/10 bar
Range:- (150 PSI)
Gauge:- 50mm (2”) Diameter
Ports:- ¼” NPT Female
Temperature Range:- -20° C to +60° C (-4° F to +140° F)
Flow Coefficient (Cv):- 0.078
Weight:- 8.00kg (17.64 lbs)****
