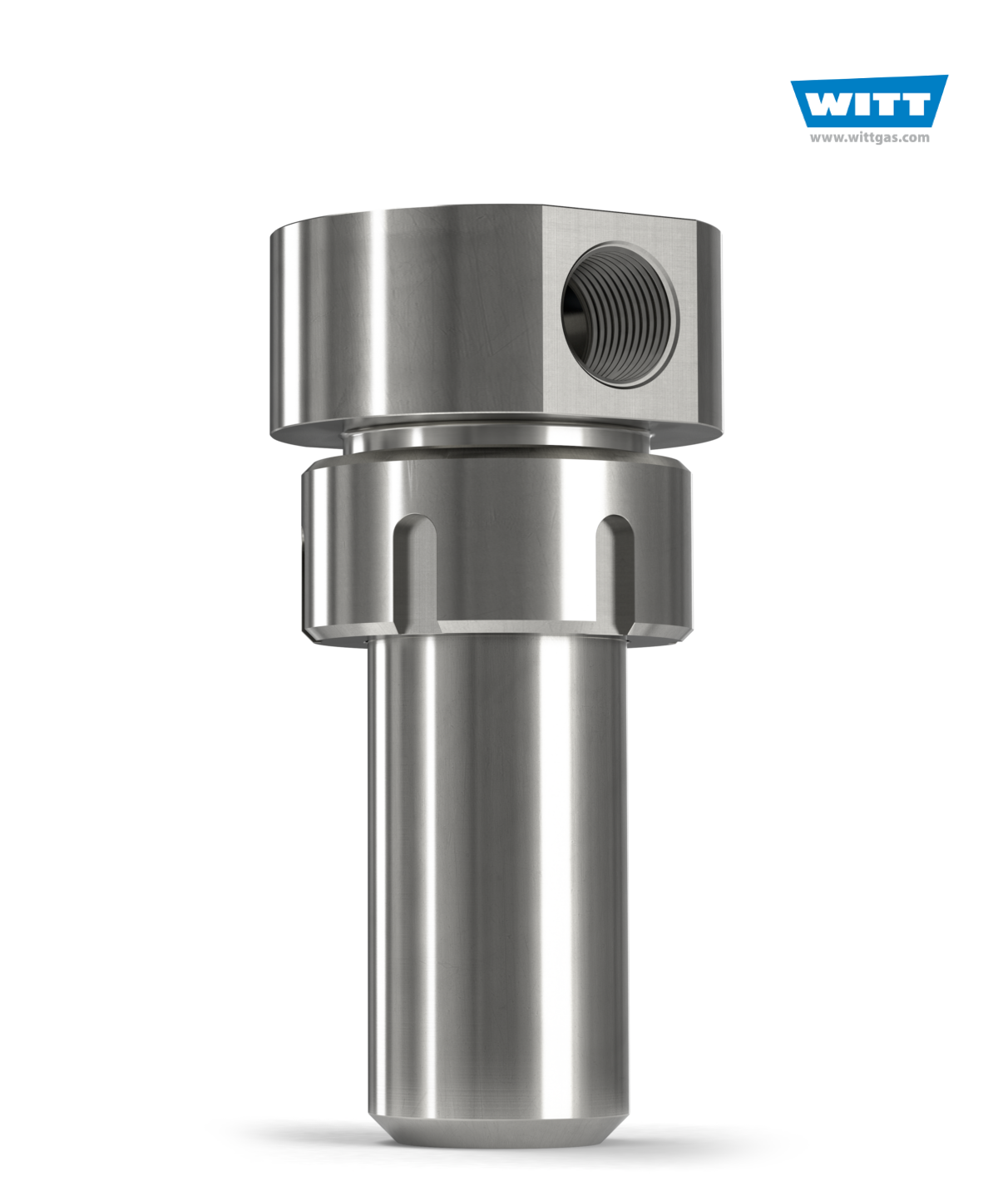

HD Gas Filter 300 Bar: 30-80 µm

• filtering out of mechanical impurities through nickel chromium steel filter inserts
• broad range of uses – compatible with many technical gases
• change of filter possible while installed due to user-friendly design
• high flowrate thanks to flow-maximising design
• reliable filtering performance increases service life of downstream fittings and equipment

• the gas filter is designed for installation in pipelines

• the filter inserts must be checked regularly and replaced if necessary
• suitable for hook wrench HN 10 according to DIN 1810

Approvals

Company certified to ISO 9001 CE-marked in accordance with PED 2014/68/EU Cleaned for Oxygen Service according to EIGA IGC Doc 13/12/E: Oxygen Pipeline and Piping Systems Cleaned for Oxygen Service in accordance with EIGA 33/18 and CGA G-4.1: Cleaning of Equipment for Oxygen Service
