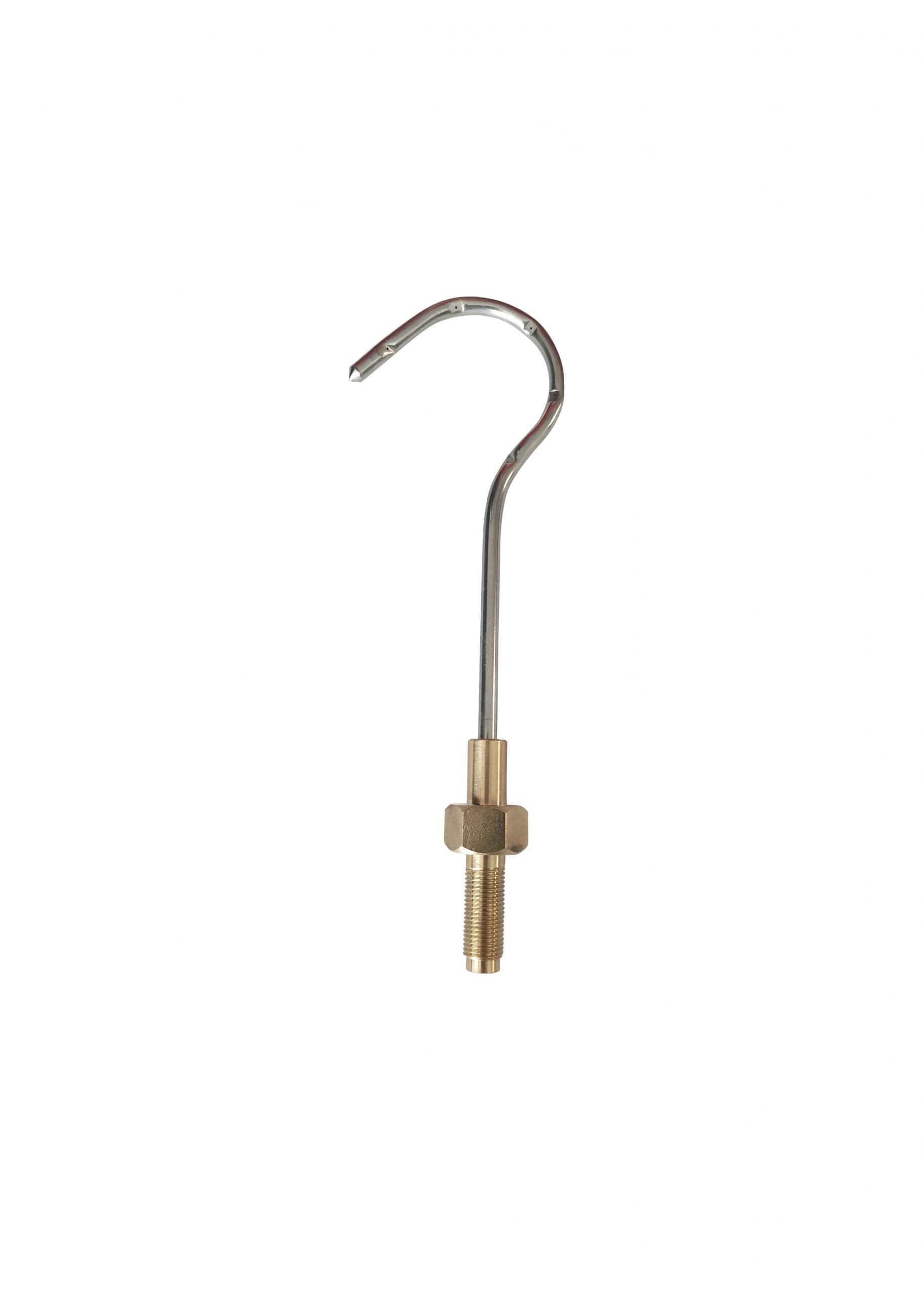

Cap'n Hook, 5 flames brazing tip. Brazing up to 1". Oxy/Fuel. Harris 196 torch

The patented Cap’n Hook Tip with a concentrated heat up to 3100°C. The 40° flame angle flows onto copper tubing and away from sensitive areas, thus minimising the chances of burning adjacent components. You get 100% wraparound for even heat distribution.

We have received feedback from a HVAC service agent that their time on job has been significantly reduced by using a Cap’n Hook brazing tip. Not only does it quickly remove the heated tube for replacement but the clean up time on swap out means he can halve a 3 hour job!

Best of all, this tip has been modified in our factory to fit any Harris 196 Contractor or comparable torch/blowpipe that uses the standard 192 welding mixer (usually sold with the torch). Simply screw it on and set the pressures as per below. (NOTE – Not using the torch mentioned above? That’s OK, we can make this tip fit most of the torch systems available. Simply email us for options)

Regulator set pressures

Acetylene: 5 psi   Oxygen: 8 psi

LPG: 5 psi    Oxygen: 10 psi
