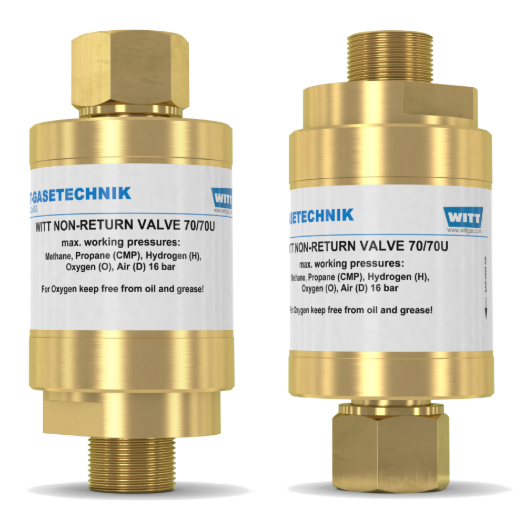

NV70 / 70U. MWP: 16/10Bar. ¾", 1", 1¼" & 1½" BSP

WITT non-return valves (check valves) for reliable protection against dangerous reverse gas flow. Every non-return valve (check valve) 100% tested.

Benefits:

• a spring-loaded non-return valve (check valve) prevents back feeding of gases which could lead to unwanted gas mixtures
• low pressure drops – using complex valve assembly with low opening pressures (approx. 4 mbar)
• brass filter protects the non-return valve (check valve) against flashbacks, extending the service life
• diverse applications – useful for many technical gases
• reduce installation costs – the spring-loaded valve is not affected by gravity and may be installed in any orientation

Operation / Usage:

• non-return valves (check valves) are used to protect equipment and pipelines against dangerous reverse gas flow. Use is possible for applications in accordance with EN 746-2
• non-return valves (check valves) are proved in accordance with DIN EN ISO 5175-2. They may also be used as a safety device to protect against flashbacks (proved in accordance with DIN EN ISO 5175-1 point 6.7), which may result from the combustion of natural gas/ LPG with air
• the maximum ambient / working temperature is 70 °C / 158 °F

Maintenance:

• annual testing of the non-return valve (check valve), body leak tightness and flow capacity is recommended
• WITT is happy to supply special test equipment
• non-return valves (check valves) are only to be serviced by the manufacturer

Approvals

Company certified to ISO 9001 and PED 97/23/EG Module H

CE-marked in accordance with PED 97/23/EC

Cleaned for Oxygen Service according to EIGA IGC Doc 13/12/E: Oxygen Pipeline and Piping Systems
